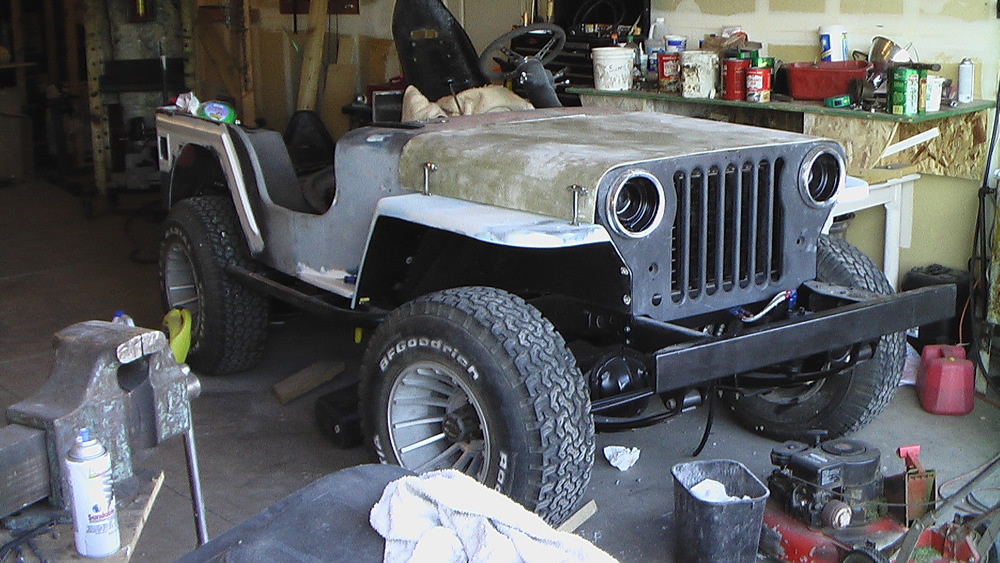

One of the issue’s I’ve put off until now has been the air cleaner. I knew fitting an air cleaner between the hood and carb would be tight, a consequence of the tall Kenne Bell intake manifold. However, I thought I might sneak it in there, but after finally fitting the hood onto the front clip, I discovered that even a low profile air cleaner won’t fit. Unfortunately, the engine can’t drop much more (not that I want to drop and reweld the engine mounts for an extra 1 1/2 inches). The only solution left (that I could think of) was to put a bump into the hood. I REALLY didn’t want to do it. But, I need to keep moving forward on this project, so I decided it was the most expedient solution.
Once decided, I then had to decide the type of bump. After mulling it over, I chose to do a simple bump that follows the lines of the hood. The first step was cutting the hole in the hood. Next, I created a form out of a 2×4, putting a 20 degree edge, the same degree, but opposite, of the angle of the stripe on the body. I laid two coats of fiberglass and resin and let it setup. The good news is that the results are even and the angles correct. The bad news is that I’m not thrilled with the results. I’ve thought about adding some angles to the front to make the bump more interesting, but I think I’ll keep it simple and save the details for version 2 of the hood.

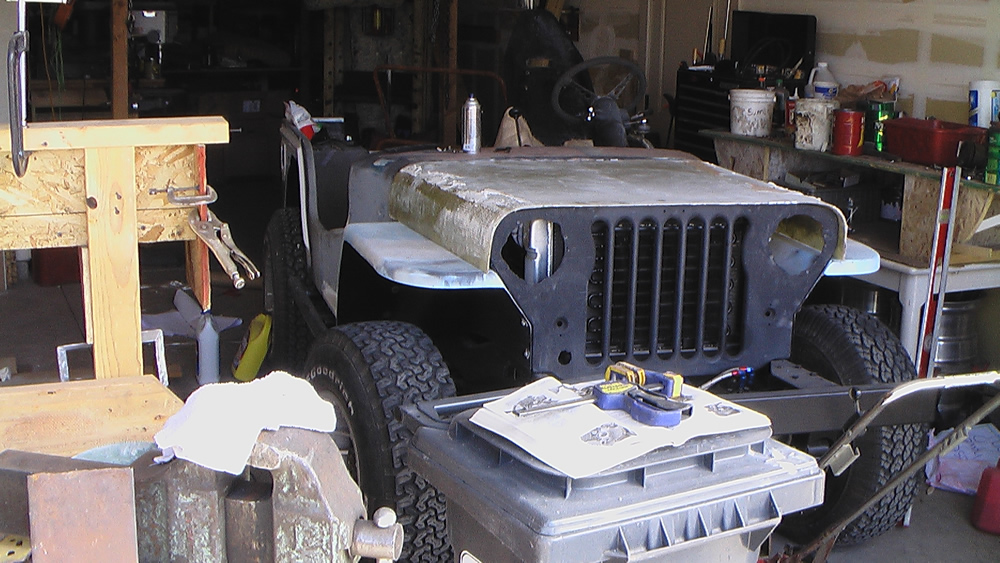

Here’s the hood precut

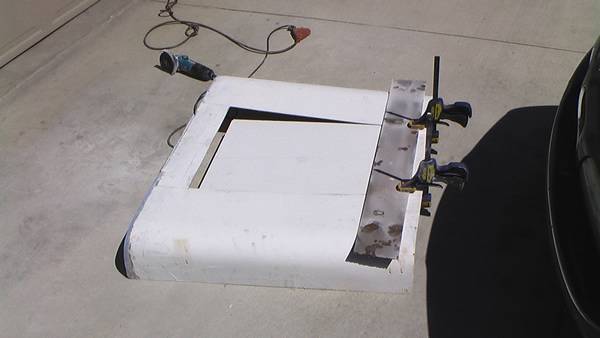

Here’s the hood with 3 sides cut. I used a cutting wheel to do the cuts and a flat piece of steel as a guide to create a straight line.
