Builds: Phil’s former 1953 CJ-3A

• CATEGORIES: Builds, Features

I ran across this website, which shows pictures of Phil’s former 1953 CJ-3A.  According to his website, he has sold this jeep. It’s solid looking, nice jeep.

What I liked about some of these pics is that they show a solution for installing a taller engine into a flattie.  I figured there might be some readers out there who would find this interesting.

Here’s some pics of the transfer case/tranny undercarriage.  Note how it has been dropped with some square tubing.

1953_cj3a_shelvin1

Now look at how the engine has been dropped.  Solid plates and arms reach out from the engine to the frame and mount on top of something welded to the side of the frame.  It I were doing this, I’d probably beef up the metal that spans the gap from the engine to the frame.  What I can see is if there is rubber underneath the point where the engine mount meets the frame.

1953_cj3a_shelvin_engine1

1953_cj3a_shelvin_engine2

1953_cj3a_shelvin_engine3

Note the back of the frame has been lifted by inserting a block between the shackle and the frame.  Strangely, this wasn’t done in the front.

1953_cj3a_shelvin3

Note the hood on this CJ-3A.  It appears to be a trimmed down CJ-3B Hood.

1953_cj3a_shelvin5

Here’s are some more pics of this build ….

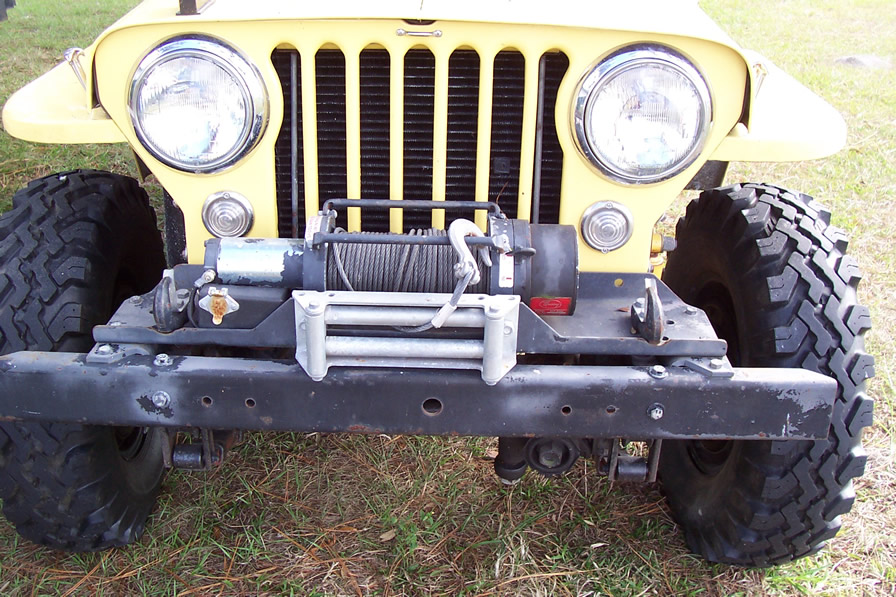

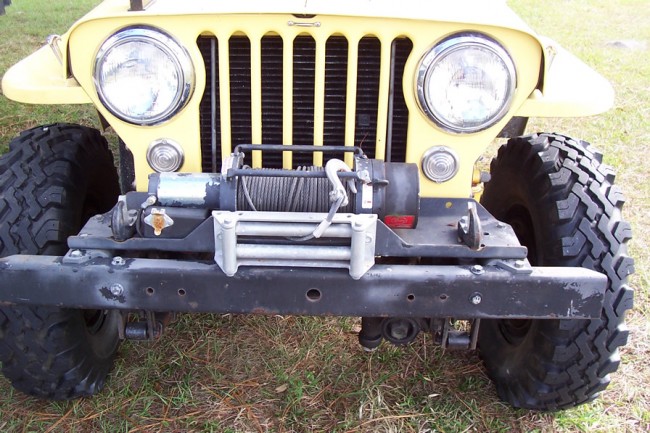

1953_cj3a_shelvin2

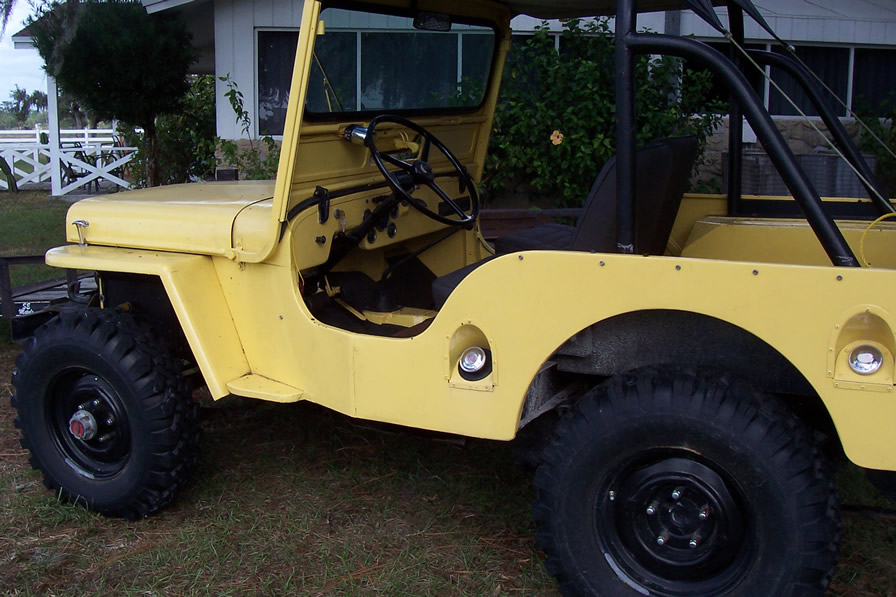

1953_cj3a_shelvin6

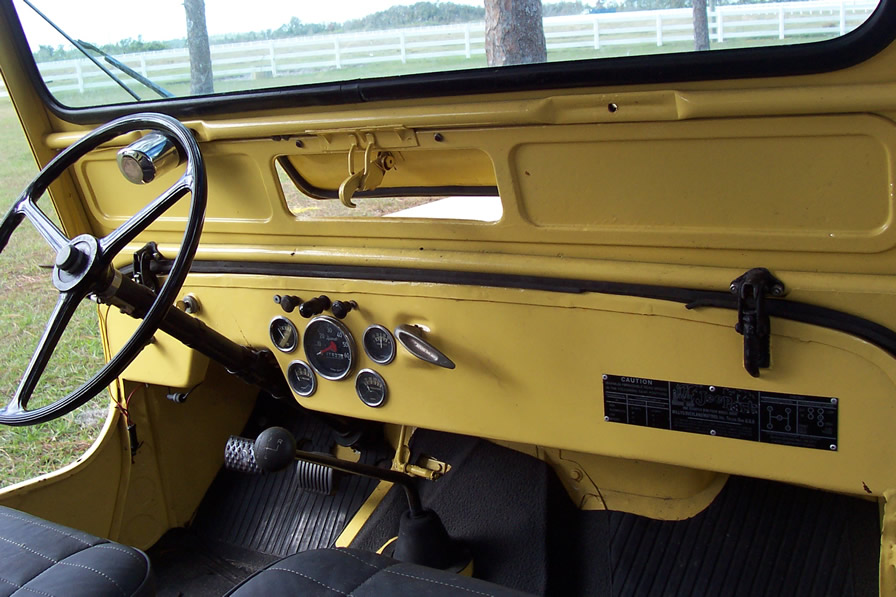

1953_cj3a_shelvin7
