1946 CJ-2A Morganton, Ga $550

• CATEGORIES: News This site contains affiliate links for which I may be compensated.

1946_cj2a_morgantonYeah, that body looks like it might be shot.  This seller also has this MB for sale and this non-running M-38 for sale.

“1946 Willy’s Jeep CJ-2A. Complete and Original Running Gear. Great for Parts. $550.00. Call Todd – Please Leave Message. 706.633.6072”

http://atlanta.craigslist.org/cto/1185906146.html


To Top

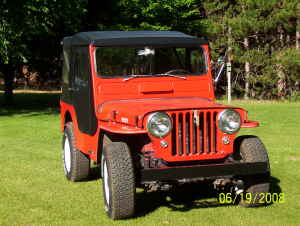

1948 CJ-2A Elk Rapids, Mi $6500

• CATEGORIES: CJ-2A • TAGS: This site contains affiliate links for which I may be compensated.

1948_cj2a_elkrapidsIt appears to have been restored.  I see no obvious issues.

“1948 Willys CJ2 Jeep. New Complete Top and New Tires & Rims. New Clutch Plate, Pressure Plate and Throw Out Bearing, New Generator & Voltage Regulator. New Gas Tank. The Vehicle Looks Great and Run Great. Mileage 35,000 (Approx) She’s a Beauty.”

http://nmi.craigslist.org/cto/1185893196.html


To Top

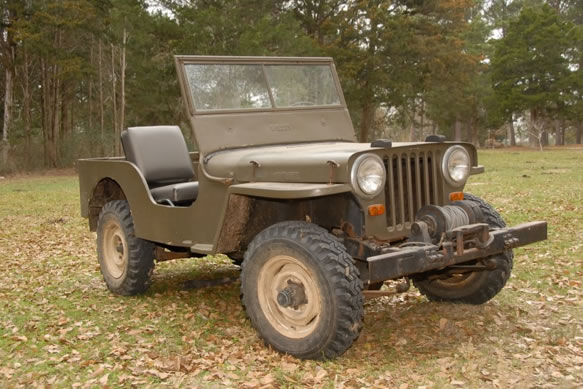

1946 CJ-2A Houston, TX **SOLD**

• CATEGORIES: CJ-2A This site contains affiliate links for which I may be compensated.

UPDATE: **SOLD** Was $6500

A variety of good quality images of this jeep here.  It appears to be a later model ’46.

“This is my 1946 Willy’s Jeep for sale in New Ulm Texas. It has a recent new engine replacement along with the radiator, fuel pump, brakes and gas tank. Cooling hoses and belts are also new. The generator and Battery are recently replaced. Tires are in great shape. The winch is not running but could be. There are some places with rust (see pics) but not significant. The mileage is not accurate as the odometer hasnt worked in years. The car basically hasnt been driven in 10 years until I had the above mentioned work performed over the last year. It runs like new now!”



1946_cj2a_houston


To Top

No Updates Tonight – Squashed Finger

• CATEGORIES: Biscuit This site contains affiliate links for which I may be compensated.

UPDATE:  Well, my finger is better, though swollen and purple, but for some reason the internet is crawling very slowly tonight.  So, I’ve made a couple updates and will try again in the AM (5/25).  I’ll also include an update on finishing up my brakes today (yeah) and a cool video of how to re-seat a tire using WD-40 and a flame.

No updates tonight (5/23), except for the brief info below.  I was pulling off one of my shocks when it suddenly slipped off, catching my finger between the shock end and the brake backing plates.  It’s a nice rosy purple 🙂

The good news is that I got my custom front brake hose brackets cut and bent (pics tomorrow).  I also welded the brackets on to my front housing so that I can attach limit straps for racing.

Tomorrow I’ll weld on the brake hose brackets, reattach my proportioning valve, and hook up my brake lines.


To Top

Builds — Brian Finishes His Drivelines

• CATEGORIES: Builds This site contains affiliate links for which I may be compensated.

Brian’s been back to work on his CJ-3B.  After a bunch of body work and suspension work last fall, he’s got the axle housings where he wants them.  So, over the past month he has tackled the creation of some custom driveshafts.  Thanks for sharing Brian!

REAR DRIVELINE

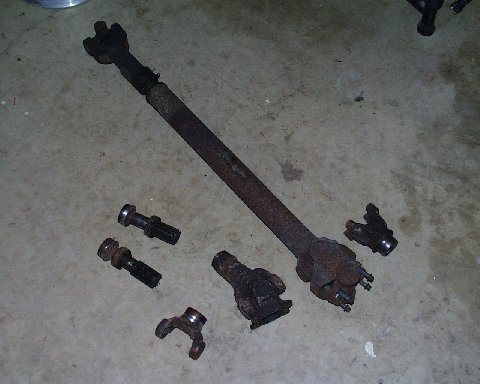

Brian writes: “I wanted a CV rear drive shaft so I bought a front drive shaft from a Grand Cherokee for $20.00 off craigslist.

driveshafts1

The other pieces shown were removed from stock dive shafts.  I thought I would use them for the front. WRONG!

With the help of Mick C. and his lathe we cut the CV shaft down to the size needed. Before installing it I discarded the E-brake assembly and bought a new yoke from Deny’s Drive shaft
http://www.dennysdriveshaft.com/p233_cv_yoke_dana_20_transfer_case_1310_series__10_splines.html
It turns out, the dust shield also needed to be removed when installing it onto the Dana 18.

driveshafts2

The result, seen below, is one big beefy rear drive shaft with good travel and articulation.

driveshafts3

FOR THE FRONT DRIVELINE:
Due to the spring reversal I installed,  I decided I needed 4-5 inches of travel, which meant the parts from the stock shafts would not work. I started searching and could not come up with any type of stock shaft I could modify for the travel.

So, I Googled ‘Spline Shafting’ and came up with Grob Inc.

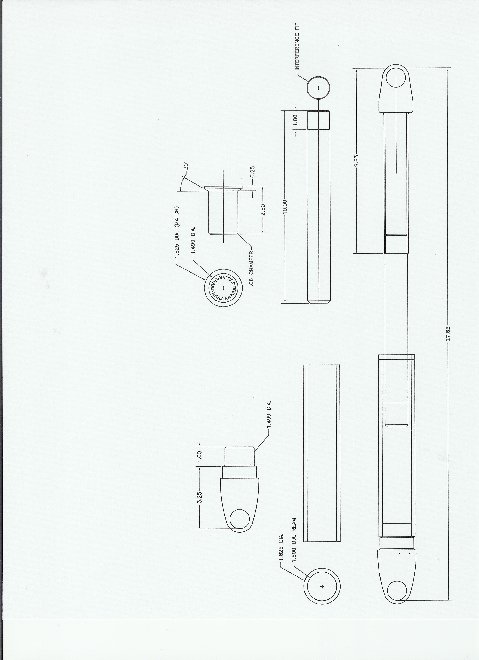

http://www.grobinc.com/coldrolled/std_spline_shafts.htm I selected the 1.185 Dia. 20 spline shafting to build my shaft. The diameters were close to stock but the spine depth is less on the Grob spine.

driveshafts4

The rear yoke and tube of the shaft is part of the stock shaft that came with the jeep. Some where in my dealings I already had procured a CJ7 front shaft.  So, I took the front 1310 yoke off it to mate it with the Dana 30. Mike and I turned it down and shortened it.

The main body was supplied Mr. Smith, who did it at Chrysler before the shut down. The tube was dressed them reamed at 1.500 ID. Mick C. did the precision turning’s and the fits were a slight interference fit. The spline shafting is made of 1117.  I wanted this heat treated so I took it over to: Westside Flame Hardening Inc.   http://www.westsideflame.com/cgi-bin/index.pl?init=1
(A Mom and Pop shop just out side of Detroit trying to survive. They only had three pieces in the shop to work on. A lot of people think of the Big Three in the bailout, but there is far more people’s livelihoods disappearing as well.)

driveshafts5

Because of the Sm420 I have installed, I had to replace the front yoke and run the small u-joint. I bought my transmission off Dave [ed note .. that would be me] with the adapter from Advanced Adapters. When the big 1310 u-joint did not fit I called AA and they told me I needed to run the small one.

driveshafts6

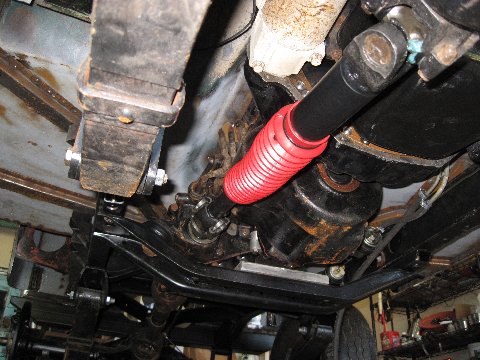

Another problem I had was that the spines were exposed. So, I found a Rancho shock boot and it turned out to fit just right.

For both shafts I spent:
$20.00 for the Grand Cherokee stock shaft
$45.00 for the spine shafting.
$60.00 for having them welded.
$25.00 for Heat treating of the front spines.
The out standing machining on the shaft was done by “Mick” & Mr Smith” and was free.  Two custom Shafts for $150.00 Not bad.

I have been working on brakes and the radiator and other small things time permitting I think I can run it down the driveway by late June.

– Brian


To Top

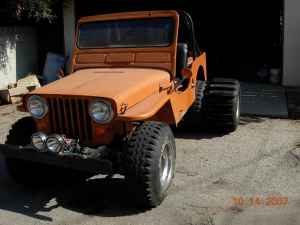

1950 CJ-3A Los Angeles, Ca $7500

• CATEGORIES: CJ-3A This site contains affiliate links for which I may be compensated.

UPDATE:  Still Available.  Price went up $300 to $7500. It’s been available for a year.

I like the engine (in terms of everything appears neatly organized) and the color, along with the fresh loooking body, but that 5.0 still looks to be backed by a t-90.  Given the apparent lack of additional major mods, I’d say this price will drop.  Paddle tires included.

” 1950 Jeep Willy, Rock Roller, off-road, 4×4, completely rust free, all new electrical, new 5.0 V-8, extra parts. Very reliable, orange color.  Very Light and cheaper than a Rhino. Will go anywhere: sand, dirt, mud. $7500.00 obo *Will consider any reasonable offer.  *Don’t buy a “rust bucket” for $3,000-4,000 when you can own this rust free jeep with a V-8, ready to play! If interested, please call Roy at 310-871-0430 or 818-920-2905 and leave a message or send an email. ”

http://losangeles.craigslist.org/wst/cto/1183607047.html


To Top

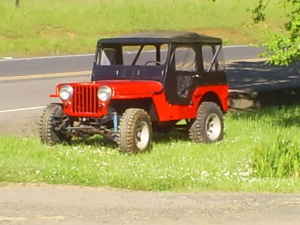

1946 CJ-2A Oakland, OR **SOLD**

• CATEGORIES: CJ-2A • TAGS: This site contains affiliate links for which I may be compensated.

1946_cj2a_oaklandUPDATE: **SOLD** Was $2300.

No Motor, no windshield Glass.

“new paint,new top,rhino lined inside,clean engine bay,good tires.Needs a windshield and a motor.The jeep has lots of parts for a four cylinder.the jeep does have the t-90 trans with the dana 18/20 transfer case and i have a turbo 350 with a 203 transfer case to go with it incase somebody wanted to small block it.”


To Top

1947 CJ-2A Iowa eBay +Girls of eBay

• CATEGORIES: CJ-2A This site contains affiliate links for which I may be compensated.

Jim zipped this ebay listing my direction, pondering whether this bikini-clad female fits the rough and tough jeep. I replied to him, suggesting that the picture might have been taken with the intent to land the ‘model’ on the GIRLS OF EBAY PAGE … and sure enough, she’s there. I have no idea how that automated search works functionality works …. Maybe I should get into motorbikes 🙂

“Here it is 1947 cj2a  willys overland jeep just like the military jeeps engine is strong runs great lots of new parts strong drivetrain looks great not many better some of the new parts include alternator, fuel tank, fuel pump, carburator, fuel lines , water pump, master cylnder , brk lines plus more this has a new best top purchased off ebay for 800.00…..”

View all the pics on eBay1947_cj2a_girlandjeep


To Top

Postlets

• CATEGORIES: Website This site contains affiliate links for which I may be compensated.

Here’s an interesting idea. I just ran across a website called postlets, which allows users to create an advertisement once and then have it syndicated to other ‘classified sites’ such as craigslist, facebook, google base, etc. What it doesn’t do, at this point, is list items on auction sites.
postlets


To Top

1945 MB NAPA County, CA **SOLD**

• CATEGORIES: MB This site contains affiliate links for which I may be compensated.

1945_mb_napacounty1UPDATE: **SOLD** Was $7500

Lots of updates with this MB, but the shovel is still there.

“what we got here is a 1945 willys mb jeep , it has a buick 231 v6 , t-98 four speed trainey , dana 18 t-case with a warn overdirve, dana 30 front axle with cromoly axle shafts, warn outers, with warn hubs, wfo outer knuckles, high steer, disc brakes, dana 44 rear axle, with warn full floater kit, drum brakes , arb air lockers front and rear , 5.38 gear ratio front and rear”
