The Lightweights: Ford, Crosley, Willys, Kaiser, Chev, Nuffield, & Jeep

• CATEGORIES: Airborne Lightweight Jeeps, Features, Unusual • TAGS: .

During World War II, trying to get vehicles, especially Jeeps, onto the ground where military personnel could use them was of paramount importance for obvious reasons. But, how to accomplish that goal was less clear. A variety of strategies were used. One idea that was opened up to bids by companies was a program to create an air-droppable Jeep, a lightweight jeep-like vehicle known as extra lights (EL) or lightweight jeeps or jeeplets that could be boxed and flown into areas where they were needed.

Similar to the original jeep prototype program, where multiple companies (in that case Bantam, Ford and Willys) submitted prototypes and pilots for review and testing, during World War II the military announced their lightweight jeep program and welcomed designs from a variety of manufacturers.

This program resulted in a variety of different vehicles that have been showcased across the web, mostly through old photos. In the article below I organize them using newer photos (whenever possible) to provide the most up-to-date look at most of these vehicles (I don’t have pics of all versions of every vehicle).  For a fuller story of the history behind the lightweights, check out this 1977 article from Hemmings.

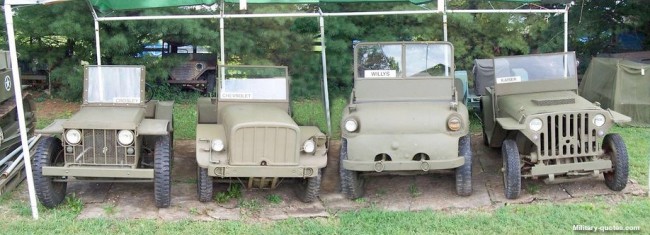

The image below shows a photo taken by Patrick Coovert in 2008 at Hallsville, Ohio. In order, from left to right are a CT3 Crosley Pup, the Chevrolet Extra Light (CEL), Willys WAC (Willys Air Cooled), and a Kaiser Extra Light (KEL). These are just a few of the jeeps developed.

1. THE LIGHTWEIGHT CROSLEYS: (More info on the Pup here)

CT-3 Pup: According to Hemmings, 36 Crosley CT-3 Pups were built during 1942 and purchased for testing in several locations. of the 36, 6 of these would make the trip to Europe.  This would make the Pup the most successful of all the early lightweights produced.  The Pup had a 2-cylinder 13hp engine air cooled motor and weighed 1125 lbs. Hemmings notes, “they could only carry the driver and one passenger, and the military testers, initially enthusiastic about the Pup, found weak steering knuckles, weak springs and a weak steering column.

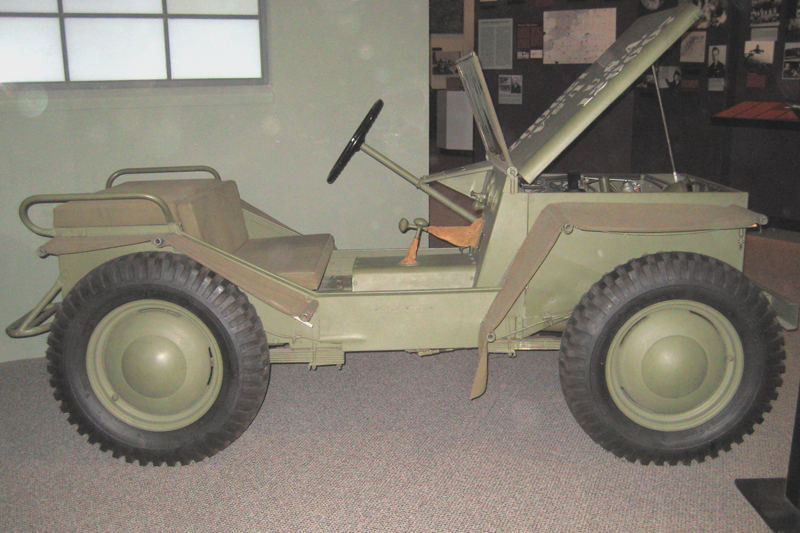

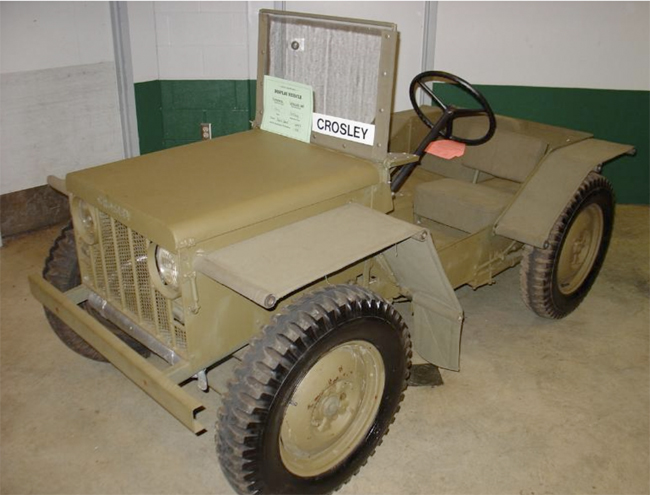

The Crosley Auto Club claims are at least 7 known to still exist (their text has since been updated to indicate that ‘several’ are known to exist).  One is housed at the museum in Ft. Eustis, Va, and one at the Mighty Eight Air Force Museum in Pooler, Ga.   These were taken by a Flickr User name Skeggy at the Mighty Eight Museum.

Here’s an image from the 2006 MPVA convention in Dayton, Oh, and uploaded to webshots by haasjo

2. NUFFIELD:

I have not located much information about the Nuffield, though it was featured in one of my early favorite book called The Jeep. I believe this was based primarily on Willys parts, though it was lightened as much as possible, with a removable steering wheel and fold down windshield to maximize compactness.  The tests of this were successful, though it was deemed unnecessary by the time it was completed in 1944. Nuffield would go on to develop another 4wd vehicle called the Nuffield Gutty.

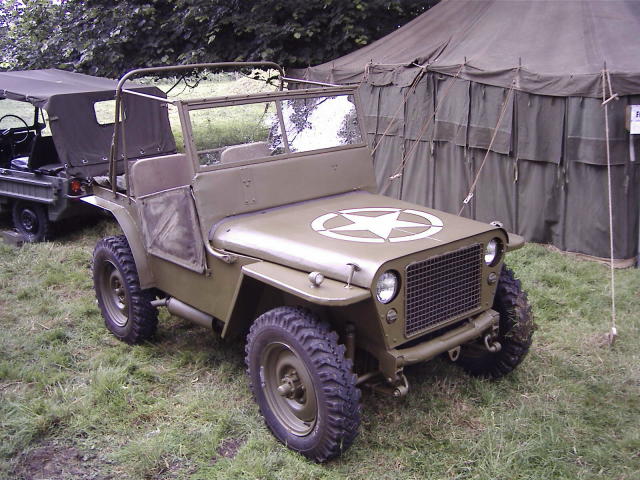

Here are some images of an exact copy (as possible) of the Nuffield lightweight jeep from a british website.

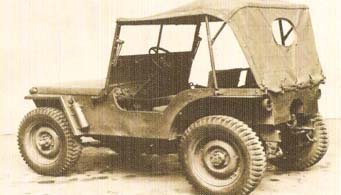

And some photos of the original:

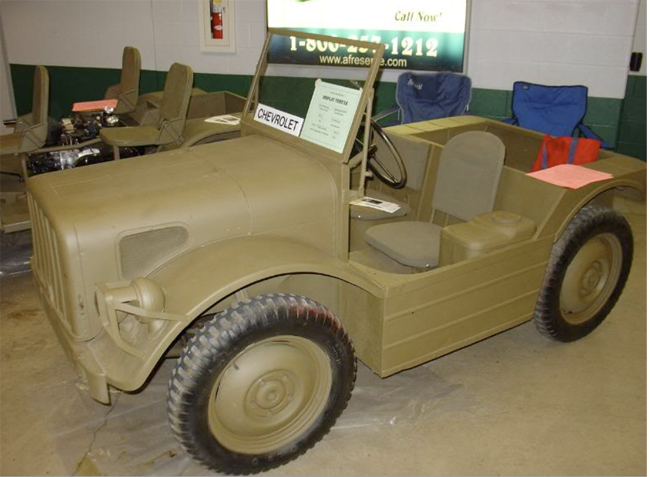

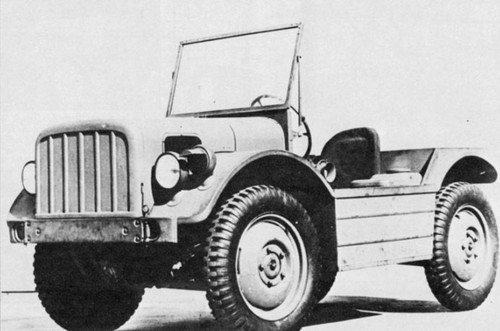

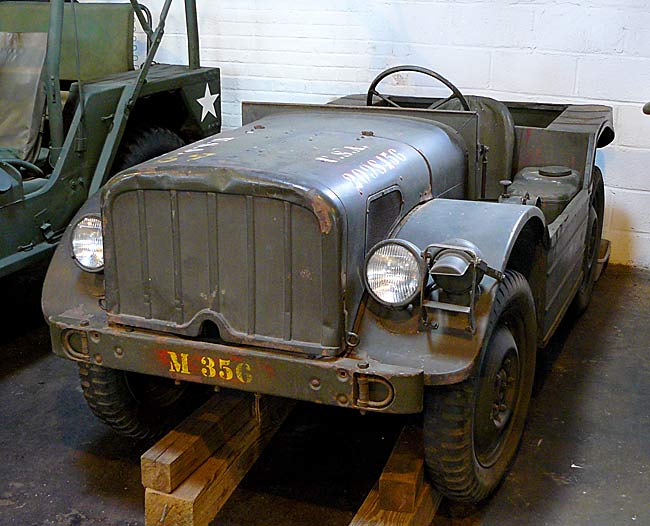

3. CHEVROLET EXTRA LIGHT (CEL): Hemmings reports Chevrolet developed 2 prototypes with an “Indian 90-degree V-2” 45.44 cid motor.  They adapted it from the Indian Military motorcycle. One prototype is located in the Militia Museum of New Jersey.  This image was taken by Bill Maloney.

This image was taken at the 2006 MPVA Convention by hassjo and uploaded to webshots.

Here’s an image of the CEL this is in a variety of places.

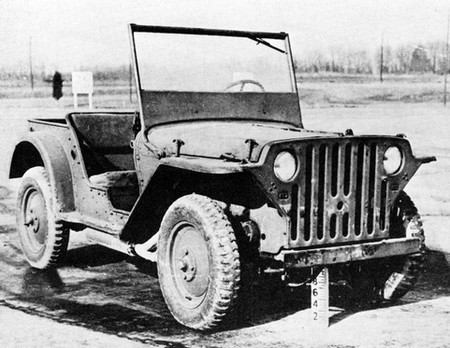

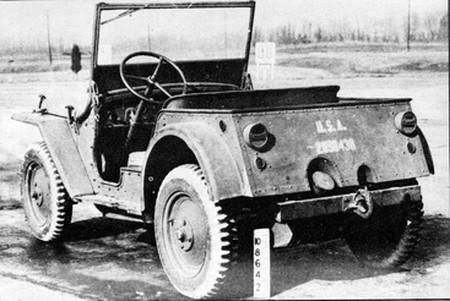

4. KAISER: There were several versions of the Kaiser Extra Lightweight Jeep.  Mark Askew in his Rare WW2 Jeep book has images of a couple different versions.  For example, the Kaiser ‘midjet’ weighed about 1370lbs and the ‘1160’ weighed 1520lbs.

Hemmings has several articles about the Kaisers, including Kaiser’s Jeeplet, Kaiser Lightweight Spotted, and a general article about the Search for Junior Jeeps.

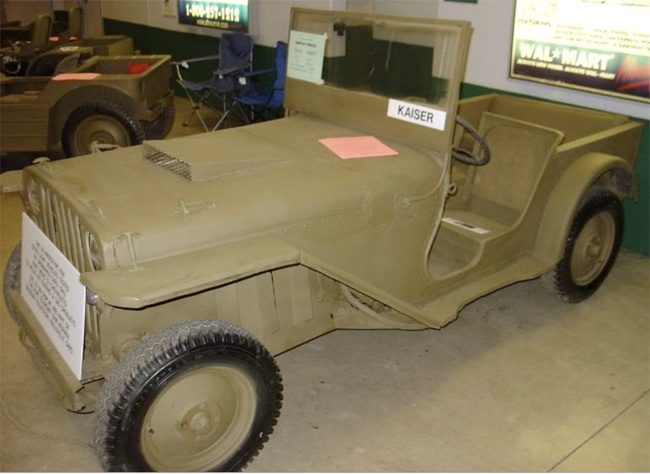

The below pic of the Kaiser Jeeplet was uploaded to webshots by haasjo:

This another Kaiser airborne prototype:

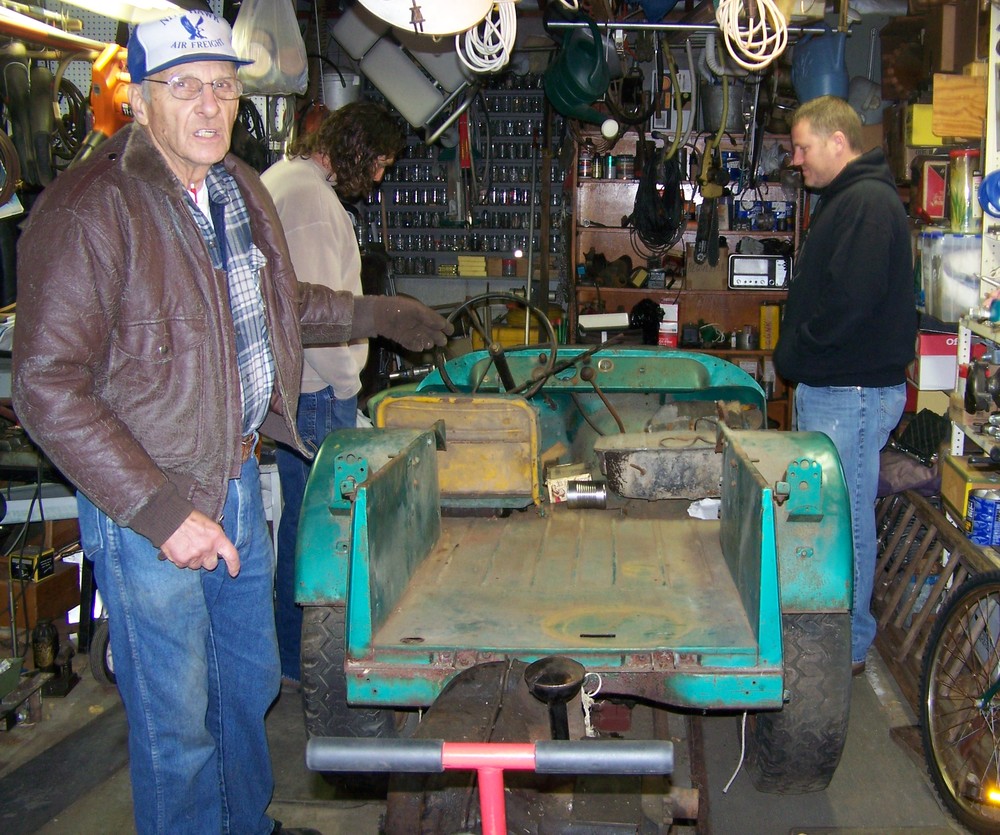

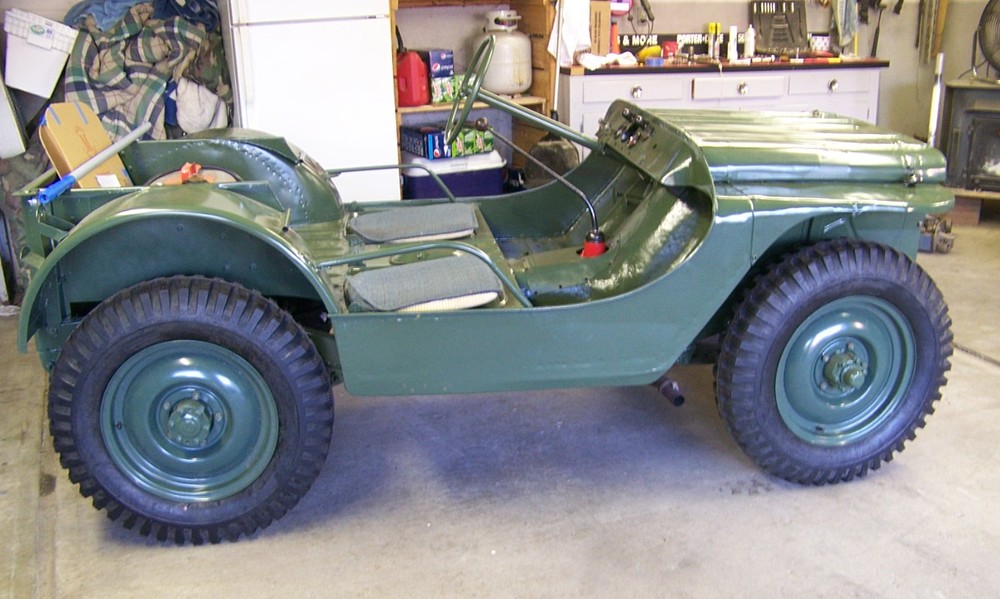

5. FORD “JUNIOR JEEP”: This prototype still exists and is owned by Ted Wisniewski of Belleville, Michigan and was highlighted in an article at Hemmings. A commenter to the article noted he had done some jeep research in the Ford archives and uncovered a wooden model of this prototype, images of which I  have never seen.

From Fred Crimson’s Book “U.S. Military Wheeled Vehicles,”, via the Hemmings website, comes this paragraph explaining more about Ford’s prototype.

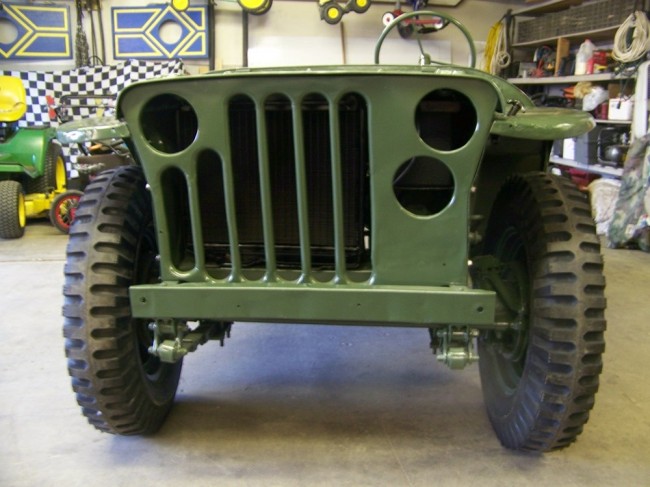

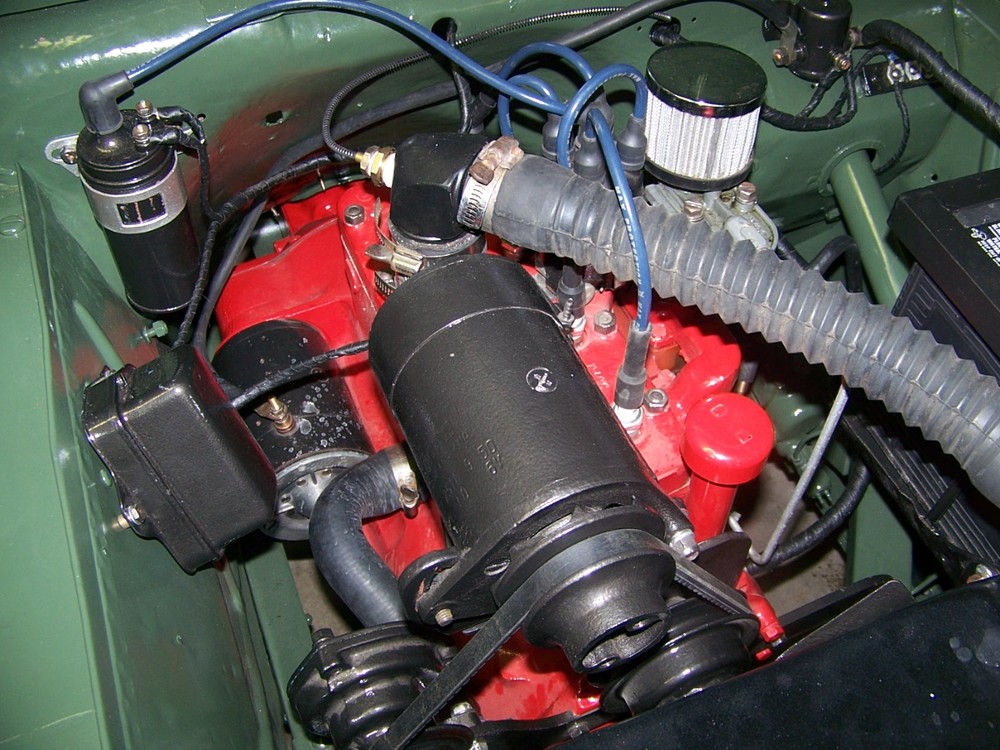

“For reasons which can only be speculated on, the little miniature Jeep was not entered in the competition, and the tests proceeded without Ford’s contribution. The engine for this vehicle was a 71 cubic inch agricultural tractor powerplant which produced good torque, but not much horsepower. Perhaps ford realized that the combination of low horsepower and downsized components resulted in an unacceptable vehicle. The other manufacturers did not seem to realize this until the tests were completed and all vehicles had failed. The tires were 5.00x17s with agricultural type tread. It was a clean and well integrated design, even if the offset grille looks a little strange. The radiator had been offset to allow clearance for the steering column. A blackout driving light is recessed below the left headlamp.”

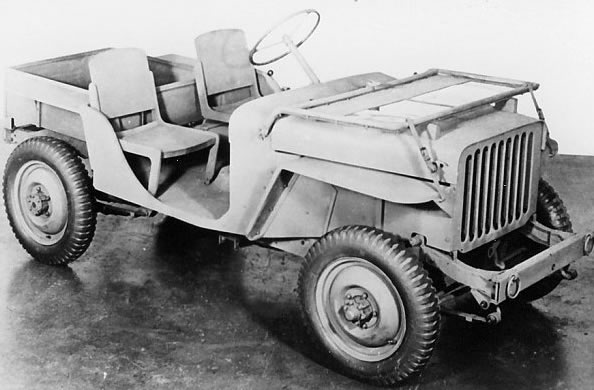

6. WILLYS: Naturally, Willys also developed a series of light jeeps.  Here are a few. Mark’s Rare WW2 Jeeps has some pics of both the Willys MB-L and L2. From Jedsite.info had a photo of the first MB-L. It’s also known as the “Gypsy Rose Lee” Jeep (Unity Magazine, Dec 1947).

willys-mb-l-jedsite-info

Here’s a photo of the Willys MB-L2:

mb_l2_willys

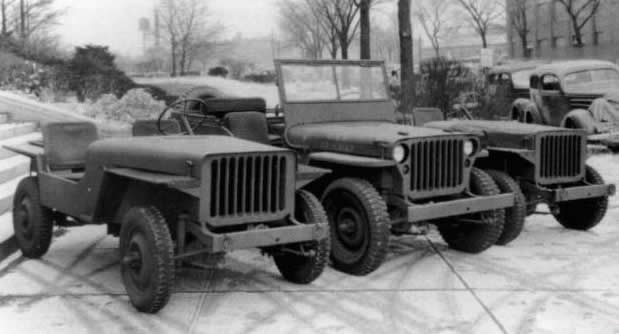

and a photo of the MB-L2 next to a standard MB

willys-mbl-and-mb

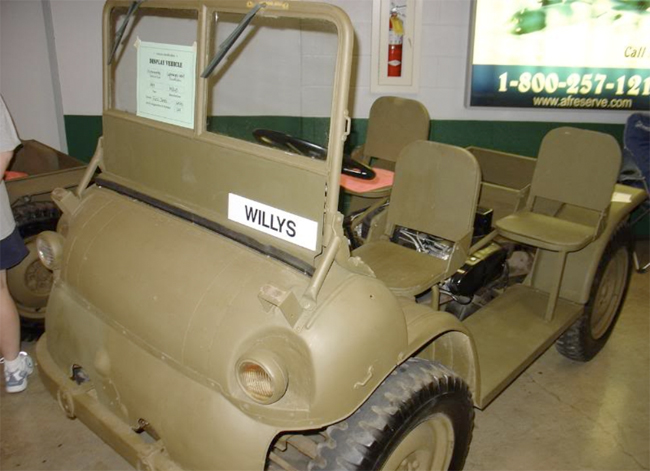

Willys Pilot WAC or Jeeplet (harley davidson engine) uploaded to webshots by haasjo

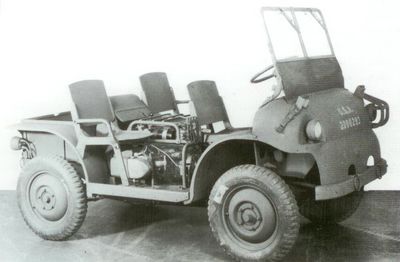

Willys WAC or Jeeplet (harley davidson engine)

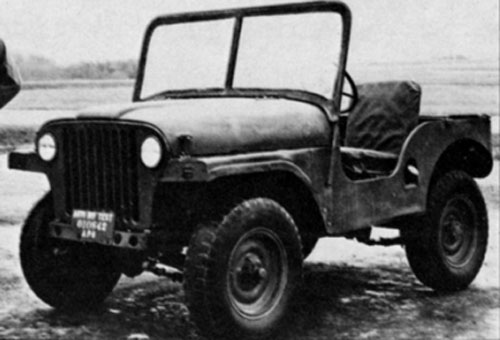

Willys Aero Jeep (bobcat).  This looks very similar to the CJ-4 prototype.

There were others too.  The Mighty Mite was a version of a lightweight Jeep.  A company that built German Krakas delivered a few hundred of these vehicles to bundeswehr for testing. And, South Africa employed an airborne jeep called the Jakkal. This 500lb four wheel drive folding airborne ‘jeep’ was tested. Pics appeared in the July 1958 Issue of Popular Mechanics (Pg 83).

The MB/GPW Glider (very unique story):

I’ve never run across another reference to this story, but Sam (who runs the Motor Pool) shared a story from his friend Lee (recently deceased) about an experimental Jeep Glider.  Not unlike the Rotabuggy, which was a jeep transformed into a helicopter, the Government also transformed a Jeep into Glider, built to carry 8 personnel plus the jeep.  The Army accomplished this by attaching glider pieces to a jeep.  The jeep was then pulled into the air, like any other glider, and it would fly to a landing spot.  Once down, charges would be ignited and the pieces would fall off. The Jeep could then drive away.

Unfortunately, while the tests were successful in the U.S. in anticipation of the D-Day invasion, a test of the glider system in Britain failed to the point that the army considered this idea unfeasible, with the differences in climate said to be the main reason they succeeded in the US and failed in Britain.

I have yet to run across any photos or drawings of this project, but perhaps someone else has?

General links

  1. Hemmings.com’s Search for the Junior Jeep is a good article for lightweight jeep history.
  2. Rare WW2 Jeeps, by Mark Askew, has a variety of lightweight photos.
  3. Jeeps 1941-45 By Steen Zaloga
  4. Jeep by Jim Allen
