Koenig Body-Extension (or Hardtop) Data Tag Size

• CATEGORIES: Features, wanted This site contains affiliate links for which I may be compensated.

Claus is curious about the size of a Kong body-extension data tag size. Anyone have one they can measure? Alternatively, anyone know the size of a Koenig hardtop data tag?

Using photoshop, I was able to figure out that the body-extension data tag size is about a 2-1 ration, meaning if the height is 2″, then the width is about 4″. My guess is that the tag may be 1.5″ x 3″.

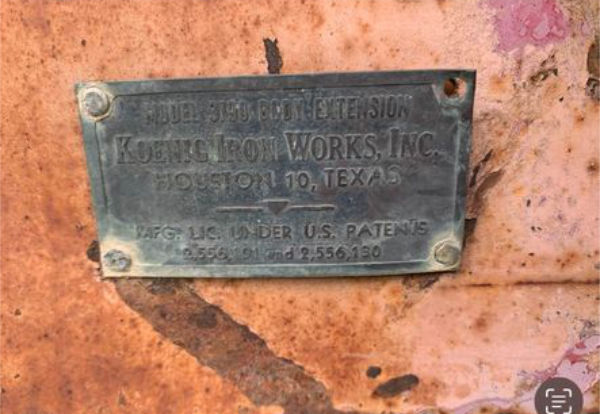

Here is a body-extension data tag example:

koenig-iron-works-data-tag-body-extension

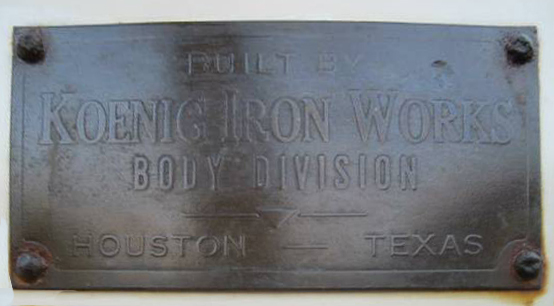

This is a hardtop data tag example:
koenig-iron-works-data-tag-hardtop



5 Comments on “Koenig Body-Extension (or Hardtop) Data Tag Size

  1. Ted Jordan

    I have both of these tags in the yard Claus, I’ll take some pics and measurements tomorrow for you and post em
    Ted

  2. Ted Jordan

    Hey Claus , I was able to get some pics and measurements for you. My Koenig body extender tag is exactly 2 3/8” long and 1 1/4” tall with the rivet holes for tag being 2 3/16” across center to center and 1” up and down center to center. The tag is slightly different than the one you posted and if you need me to I can send a few pics to Dave to post or I think I have your email and I can send em to you.
    My plow jeep top ended up being a Kelley Western top. It had so much paint on there I couldn’t tell what it said until I looked closely. I just thought it was a Koenig by looking quickly.
    By looking at your pics I’d say the Koenig top and extender tags are most likely the same size
    I’ll send you some pics
    Ted

  3. Claus

    Ted, thank you so much for the detailed info.
    I think you have my email address or I drop you a mail.

    regards
    Claus
