Seth’s CJ-3A VW Diesel Conversion

• CATEGORIES: Bantam-FordGP-WillysMA-EarlyJPs This site contains affiliate links for which I may be compensated.

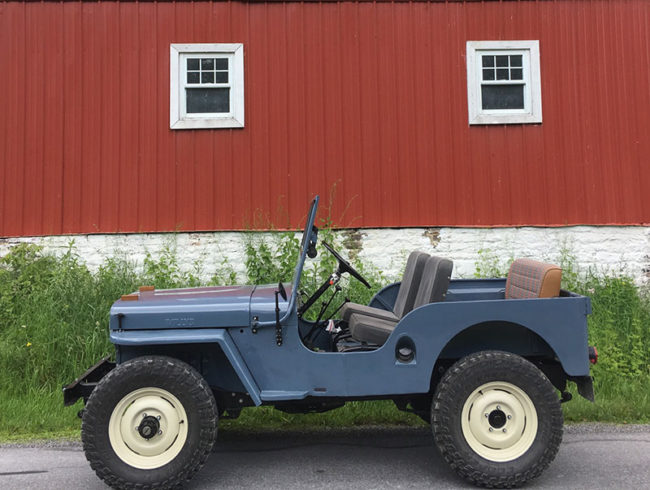

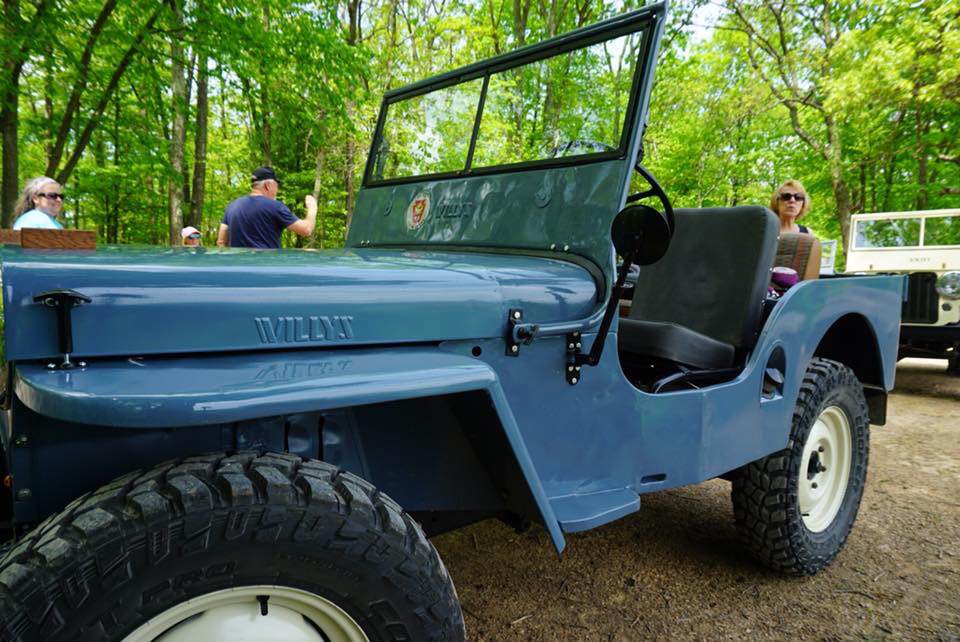

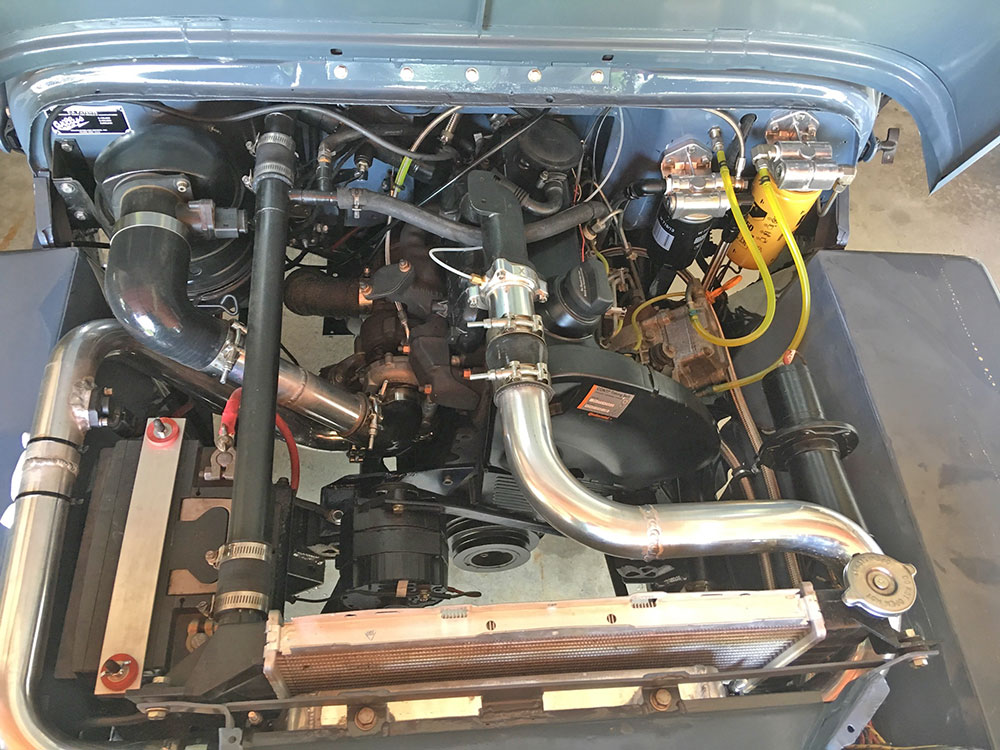

Seth just finished his winter project: a VW diesel conversion on his CJ-3A. Last November he bought a 1949 CJ-3A, but didn’t discover it had a bad block until he pulled the engine apart. So he decided to install a VW engine, while keeping everything else as close to original as he could; it still has the t-90, Spicer-18, Saturn overdrive, Dana 25/41 (lockrite F/R). As a result, the new engine produces 110hp/190ft and he is averaging 38 miles per gallon!

I asked Seth a few questions. Here are his answers:

1) What gave you the idea to us that engine?
I’ve always been a fan of diesel swapped jeeps. My CJ-5 has a Mercedes diesel in it. When I started rebuilding the CJ-3A I realized the l-head would need some work. So, I thought rather than spend money on that, why not put a TDI in it? The engine was already sitting under the work bench as a spare for my daily driver (TDI jetta wagon). I have a small lathe & mill in my basement. It took endless nights making chips and taking measurements. But it’s in and it works!



2) Did you run into any unexpected issues?

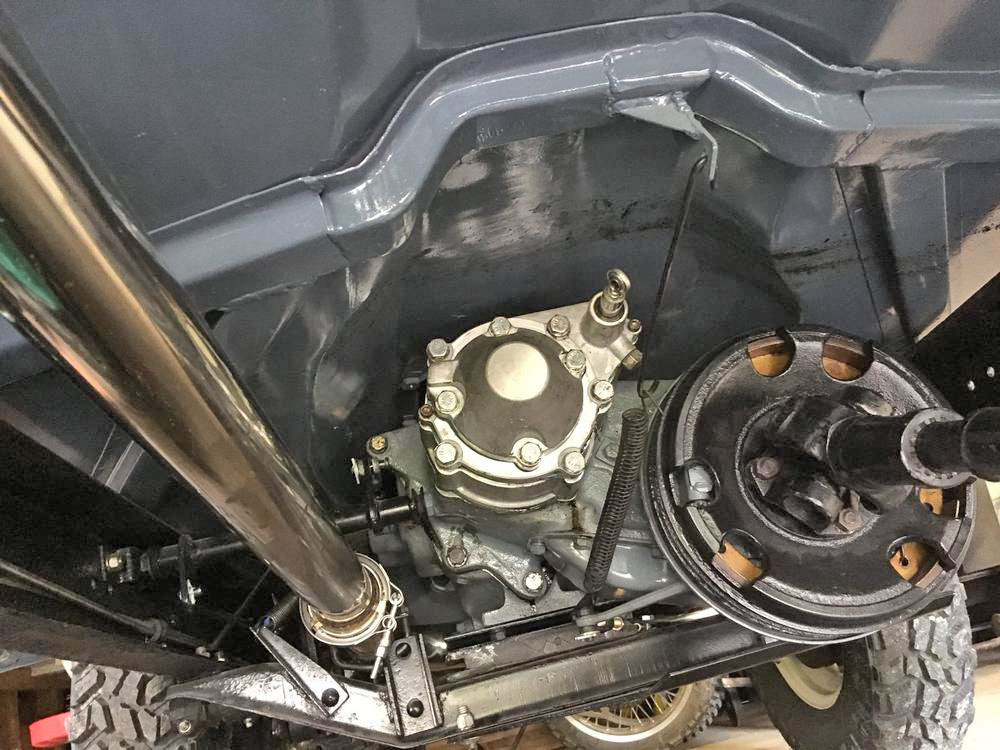

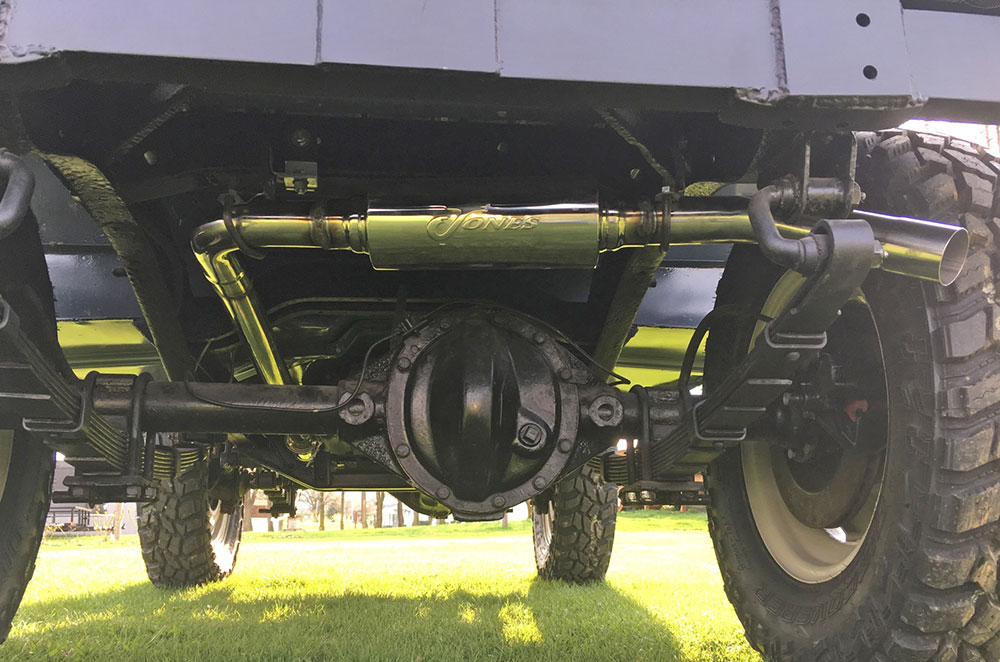

I ran into many issues. Some were expected, others were a total surprise. My biggest challenge is that this was not a previously documented swap. So, I was on my own. Honestly there were a few times I almost threw in the towel. The biggest issue was just physically fitting the engine in the jeep. My goal was to keep the jeep as untouched as possible. that meant leaving the drive train in the stock location. I wanted all original driveshafts, cross member and trans cover, etc.

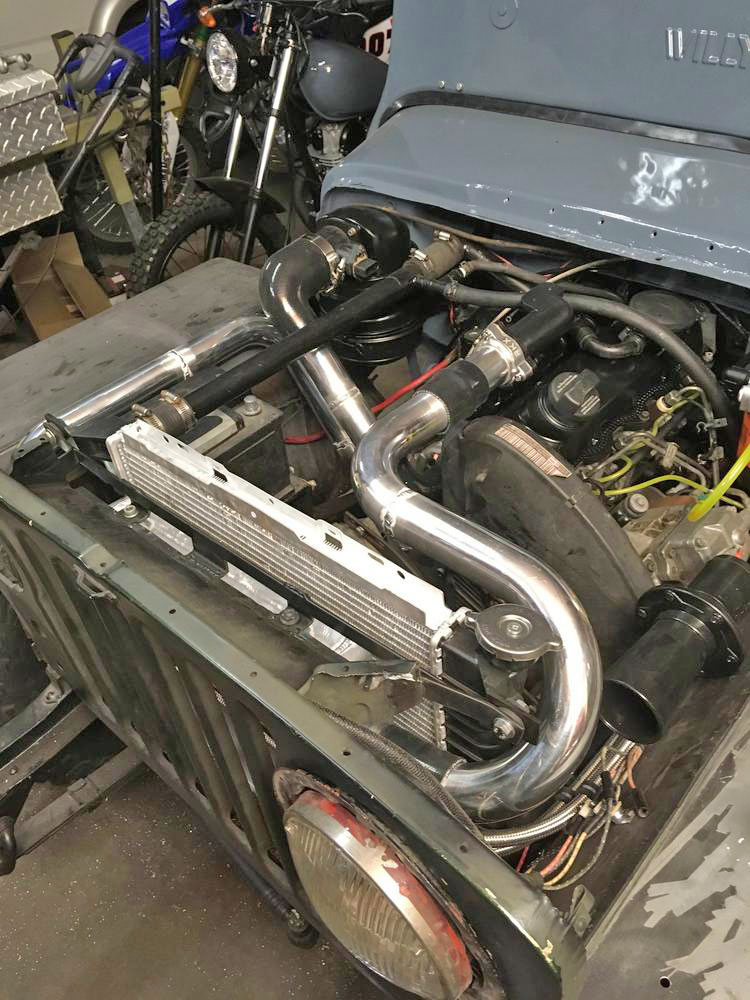

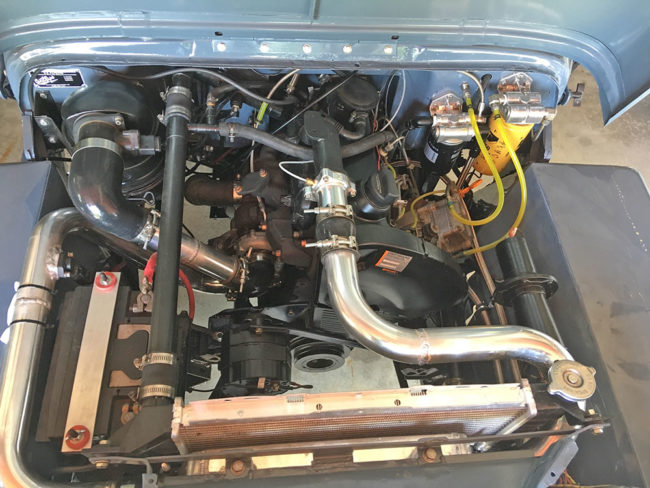

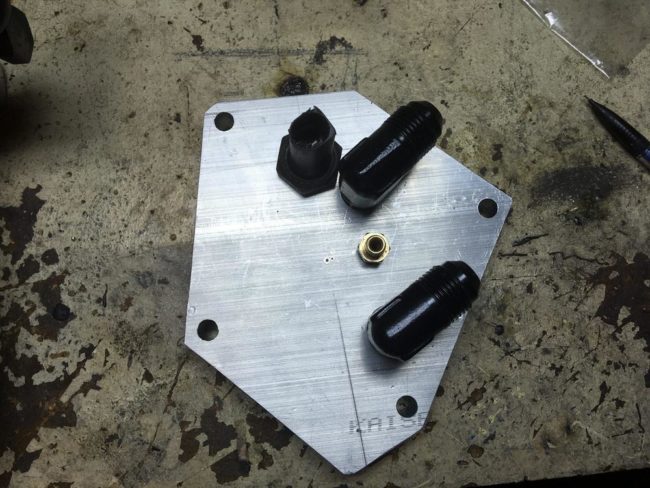

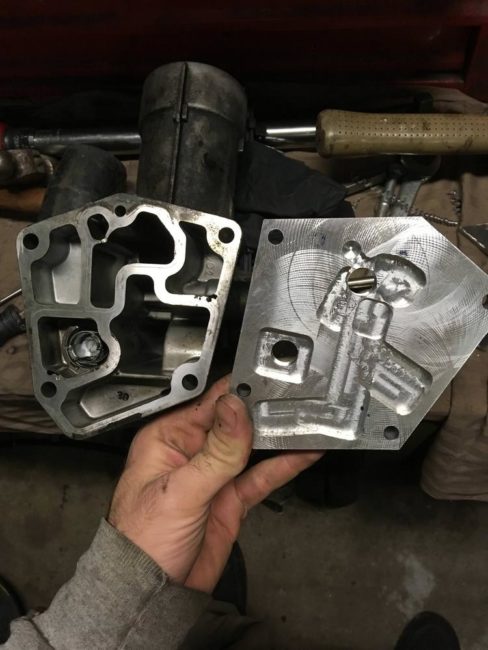

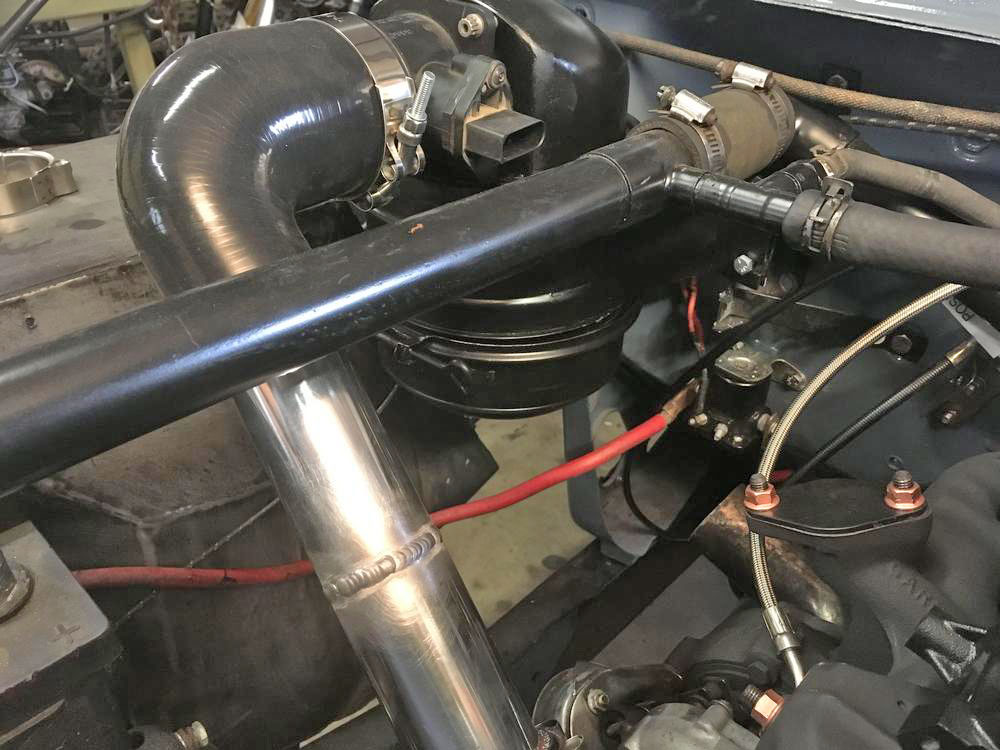

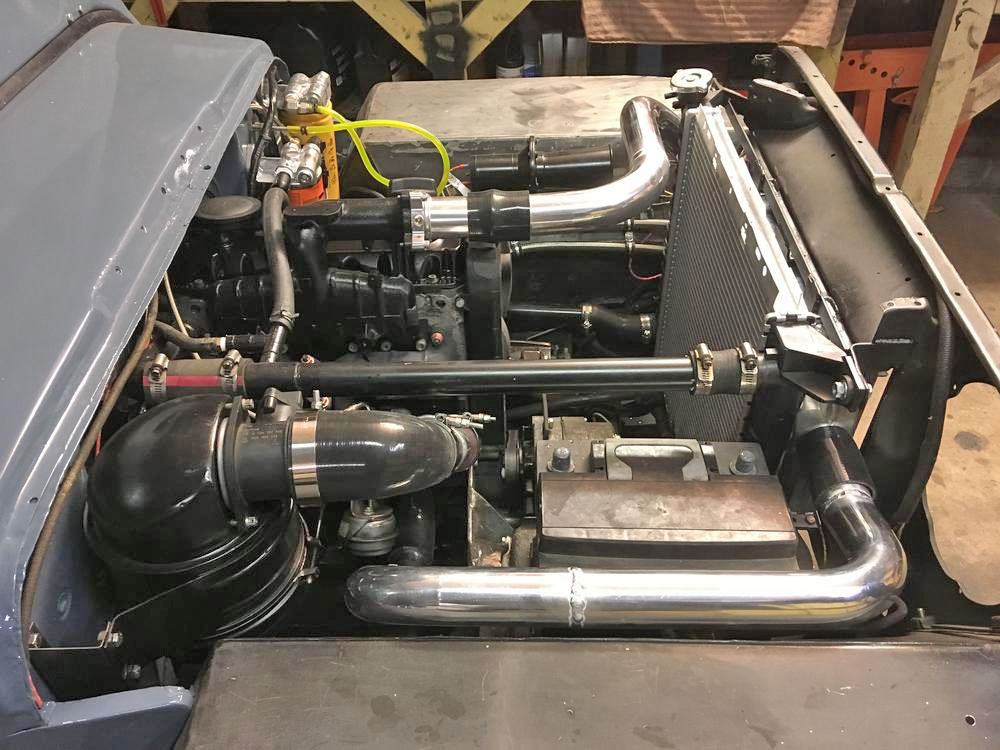

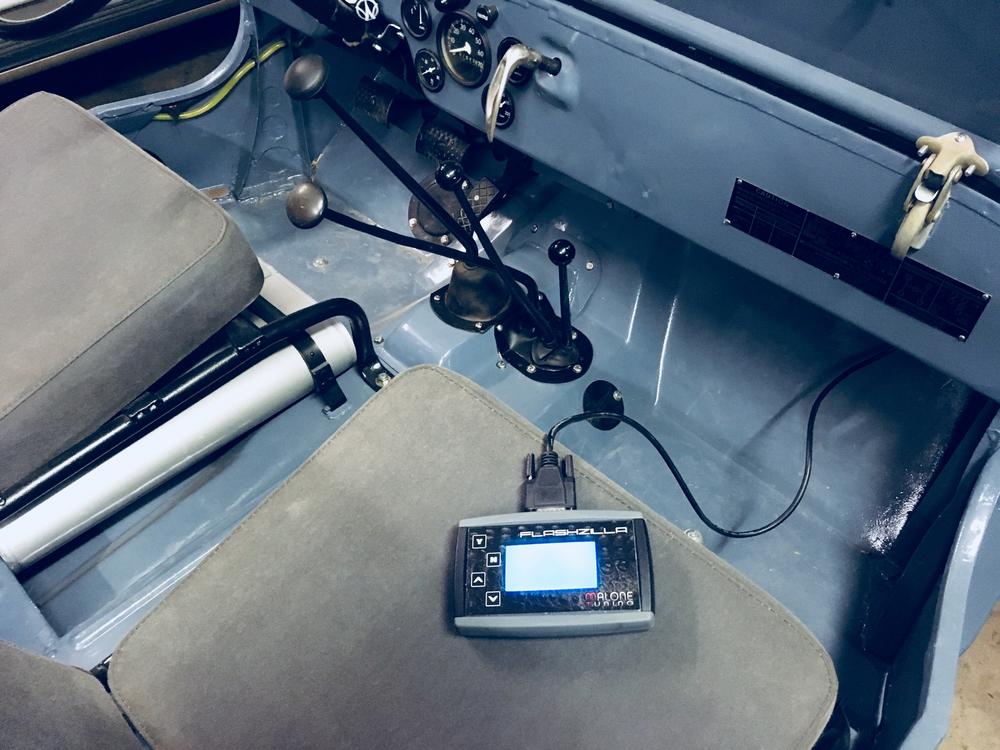

Though I was successful, keeping everything stock made the process a lot more difficult. The TDI engine has a massive oil filter/cooler housing that lands right where the willys ROSS steering box is mounted. I designed and machined a relocation plate to move the cooler/filter. This engine also uses a rear-mounted vacuum pump to control the vanes on the VNT turbocharger. Because of this I had to modify my firewall. I didnt want to do this, but it was unavoidable. There were just lots of little things, like having to run a reverse mounted alternator to make room for the turbo. Aside from that, it was all the other little things that are involved with an engine swap.



3) How’d you make the adapter for connected the t-90 to the engine?
Making the adapter was time consuming but one of the more simple parts of the conversion. Like all my projects, it started with a pizza box and a sharpie. I made template with the box to get an idea of how i needed to make the adapter plate. My goal was to make the back of the VW engine be a carbon copy of the willys engine block and crank.

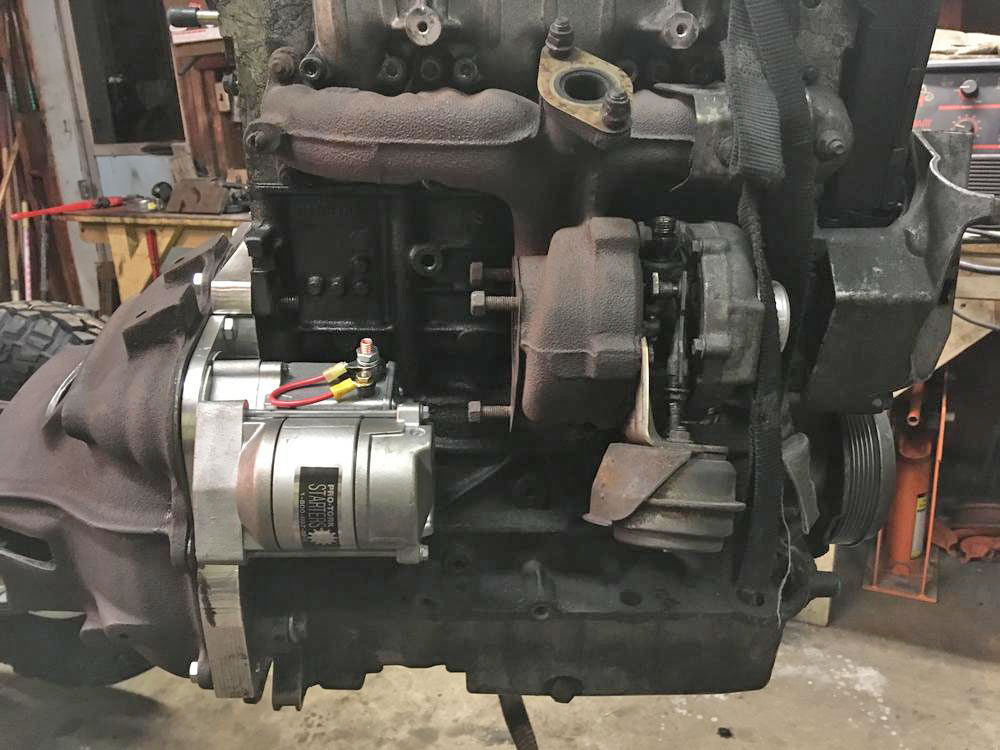

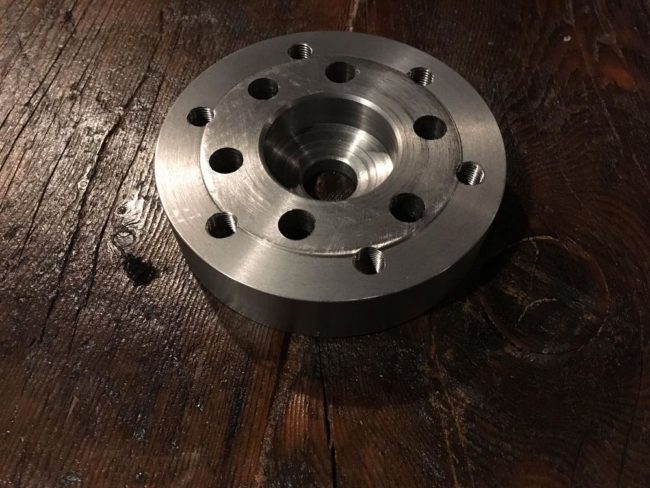

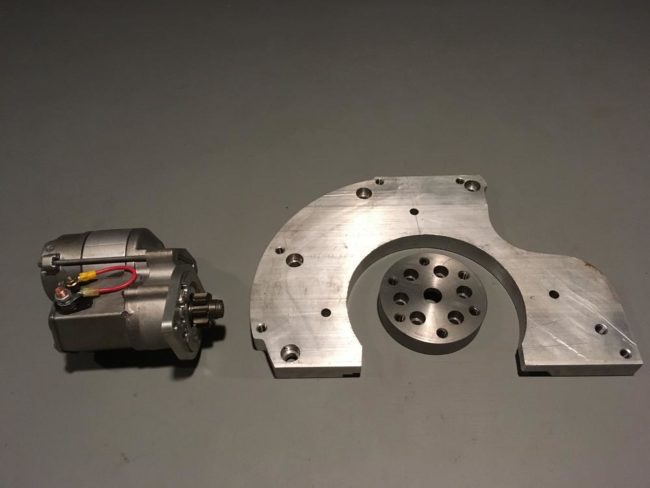

I used a 1″ thick aluminum plate bolted to the block. Then I centered the crank with the transmission using a dial indicator. Then, I made a crank adapter that bolts to the VW crank, but also fits the willys bolt pattern and protrudes the exact same amount as the willys crank. This allowed me to use the willys flywheel, clutch pressure plate and starter. In fact, I’m using a gear drive starter for a L-134. Also, I converted my donaldson oil bath filter to a paper element and fitted it with the Mass Airflow Sensor for the VW (for the factory Willys look lol). [editor’s note … nice touch :-)]
